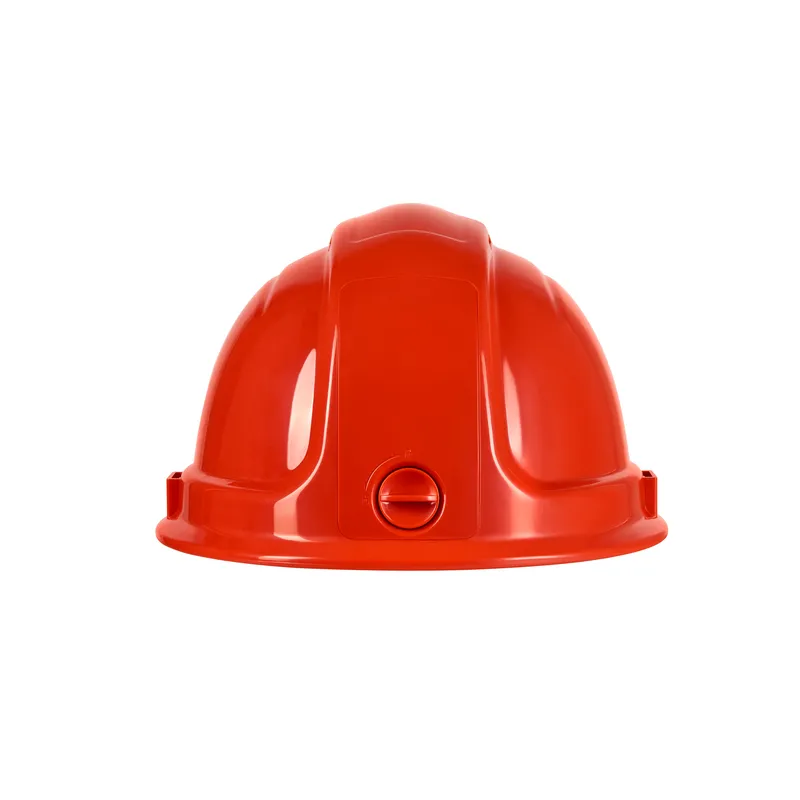

D20 Smart Safety Helmet
The D20 is an integrated smart helmet terminal, equipped with an octa-core Android 12 system, 4G full network compatibility, a 4MP 109° wide-angle HD camera supporting 1080P loop recording.
Integrated with multiple sensors for hat removal/fall/near-electric shock detection, SOS, remote group intercom, TTS broadcast, and optional RTK/UWB high-precision positioning; a 4000mAh removable high-capacity battery, and IP66 industrial protection.
Key Selling Points
● This national standard integrated helmet combines video, location tracking, and safety alerts , eliminating the need for additional equipment and freeing up your hands.
● 4MP wide-angle HD video recording, 1080P loop recording, video overlay with time and location watermarks, supports dual TF cards up to 128GB storage.
● A complete set of construction site safety sensors: hat removal alarm, fall detection, proximity sensing, and stationary lingering warning.
● Cluster remote two-way intercom, platform text-to-speech (TTS) and voice broadcasting, and real-time on-site dispatching.
● Optional RTK centimeter positioning and UWB indoor high-precision positioning, with no blind spots in tunnels and factories.
● 4000mAh replaceable battery, 10 hours of continuous operation, fully charged in 3 hours with 2A fast charging.
● Abundant peripherals: 3W high-power flashlight, laser pointer, red and blue warning lights, dual microphones for noise reduction.
● IP66 dust and water resistant, multi-color shell (white/red/blue/yellow), corporate customization available.
Feature Introduction
Core Competitive Advantage: Integrated head-mounted video system + multi-dimensional construction site safety sensors, enabling comprehensive monitoring of personnel video, location, and work behavior.
Unlike separate locators, this product directly integrates with a national standard safety helmet. Wearing the helmet simultaneously completes video recording, personnel positioning, and multiple risk detections such as helmet removal, electric shock, and falls. The backend can view the on-site footage, personnel location, and violations in real time, providing one-stop digital management of construction site personnel.
● High-definition video evidence collection: 109° wide-angle 4MP lens, 1080P segmented loop recording, automatic GPS time watermark overlay on video, dual TF cards for expansion up to 128G, clear and effective incident tracing.
● Automatic alarms for six major safety risks: removing hats, falling, high voltage proximity warning, high-risk electronic fence, prolonged stationary stay, and one-button SOS distress call.
● Cluster voice system: remote two-way intercom, full-staff text broadcast (TTS) broadcast, and unified dispatch of front-line construction personnel by the management center.
● Multiple positioning options are available: standard GPS/BeiDou; optional RTK differential outdoor centimeter positioning and UWB indoor high-precision positioning, with no blind spots in tunnels and factories.
● Outdoor work aids: 3W long-range high-intensity flashlight, laser positioning light, and night/underground construction lighting markers.
● Convenient battery life: 4000mAh removable polymer battery, allowing for 8 hours of uninterrupted construction throughout the day, and 2A fast charging for quick recharging.
| Parameter classification | Specifications Details |
| Model | D20 Smart Helmet DVR |
| System | Android 12, octa-core CPU 2.0GHz |
| Communication | 2/3/4 Full network compatibility, 2.4G/5G dual-band WiFi, BT5.0 |
| Camera | 400W 109° wide-angle lens, 1080P MP4 video recording, H.264 encoding |
| Storage | Dual TF card slots, maximum 128GB per card |
| Position | GPS + BeiDou; RTK/UWB high-precision optional |
| Sensor | Gravity gyroscope, optical distance sensor, barometer, proximity sensor module |

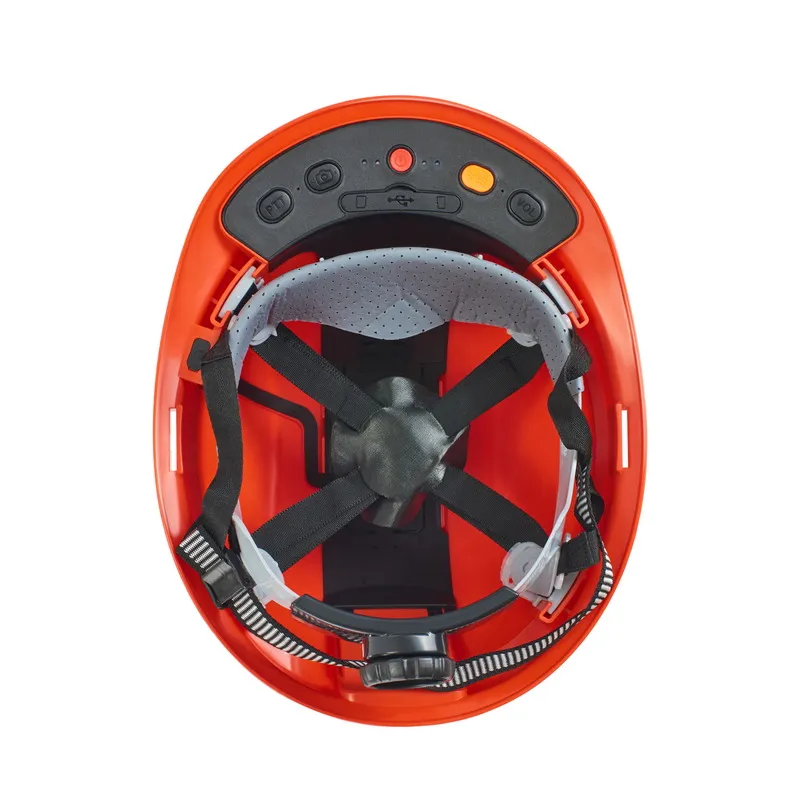

| Button | Power on/off, intercom, SOS, flashlight, volume control, proximity alarm |
| Audio | Dual-microphone noise cancellation, 2W speaker, TTS voice broadcasting |
| Battery | 3.7V 4000mAh removable lithium battery, 10 hours of continuous operation. |
| Charge | 2A fast charging, fully charged in ≤3 hours |
| Protection | IP66, 2-meter drop standard |
| Size | 307 * 240.5 * 168mm , conforms to GB/T2811 national standard for safety helmets . |
| Temperature zone | -20℃~60℃, humidity 10%-90%, no condensation |
Application Scenarios
Integrated video positioning management for construction workers, power line inspectors, railway maintenance workers, miners, chemical plant workers, tunnel engineers, and municipal road administration personnel.
Construction Site Workers
Construction Site Workers Mining Personnel Management Outdoor Workers
